Barrier Terminal BlocksGT2.5-680-02P
| Approval |
|
| Category | Barrier terminal blocks |

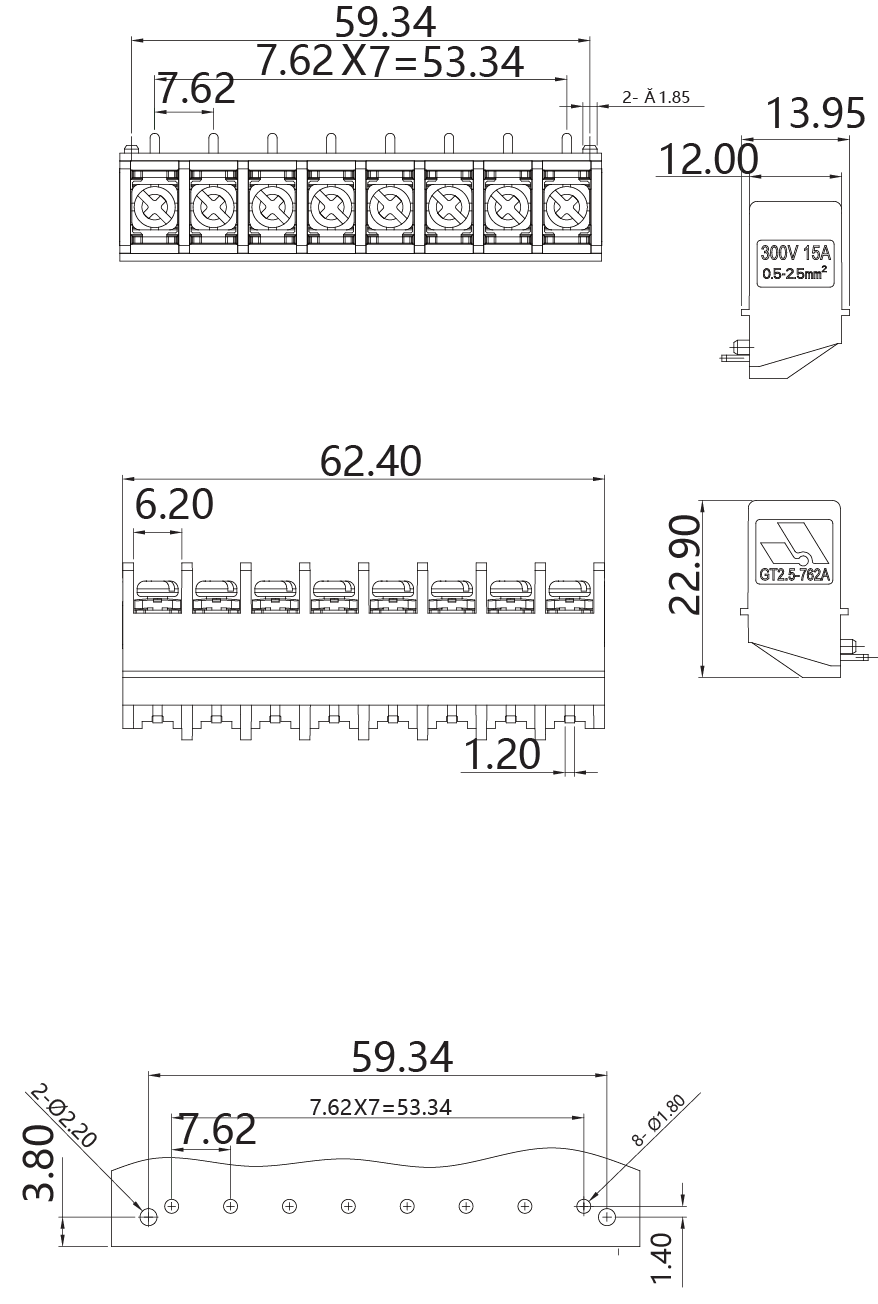

| Model | GT2.5-762A-08（227） |
| Pitch | 7.62mm |
| Poles | 08P |
| Color | 灰色 |
| Pitch[mm] | 7.62 |
| PCB hole diameter[mm] | 1.8 |
| Pin dimensions[mm]x[mm] | 0.8x1.2 |
| Technical data in accordance with IEC/DIN and VDE | |
| Rated voltage/Nominal current[V]/[A] | 300/15 |
| Surge voltage[kV] | 5.0 |
| Withstanding voltage/Current breakdown[VAC/min]/[A/S] | 2500/100 |
| Insulation Resistance/contact Resistance[MΩ]/[mΩ] | ≥500/≤20 |
| Capacity connection | |
| Cross section[mm²] | 0.5-2.5 |
| Connection | after connecting cold pressing tip with pre-insulated sleeve |
| Stripping length[mm] | 7 |
| Wiring torque[Nm] | 0.5-0.6 |
| Insulating material | PC |
| Inflammability class in acc.with UL 94 | V0 |
Joinect provides samples for user experience
GT2.5-762A-08（227）
