Pluggable screw-free connectorsDKPGF-635-XXP
DKPGF-635-XXP
6.35mm
| Approval |
|
| Category | Pluggable screw-free connectors |

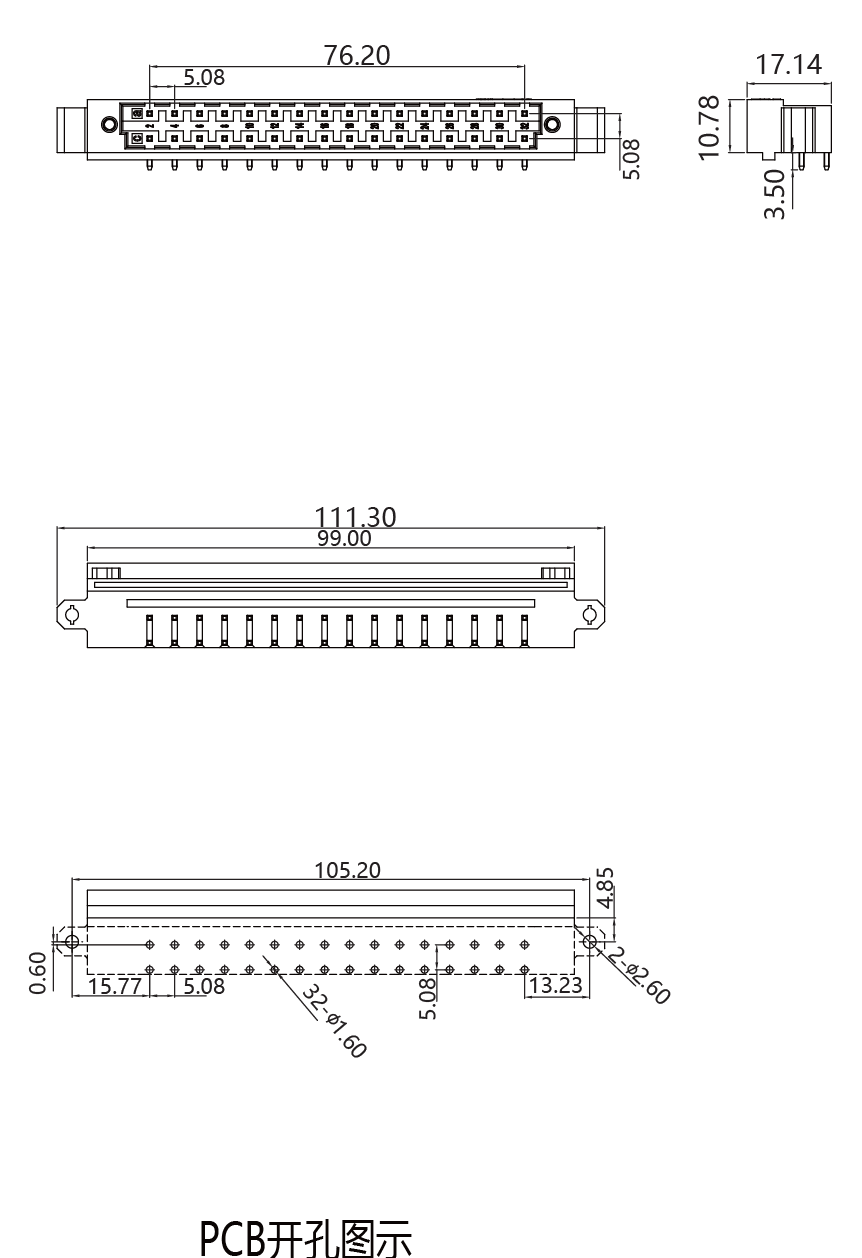

| Model | D1STF-508-32 |
| Pitch | 5.08mm |
| Poles | 32P |
| Product application |
| Pitch[mm] | 5.08 |
| PCB hole diameter[mm] | 1.6 |
| Pin dimensions[mm]x[mm] | 1.0x1.0 |
| Technical data in accordance with IEC/DIN and VDE | |
| Rated voltage/Nominal current[V]/[A] | 320/6 |
| Surge voltage[kV] | 4.0 |
| Withstanding voltage/Current breakdown[VAC/min]/[A/S] | 2500 |
| Insulation Resistance/contact Resistance[MΩ]/[mΩ] | ≥1000/≤20 |
| Capacity connection | |
| Cross section[mm²] | |
| Outside connection | |
| Stripping length[mm] | |
| Insulating material | PBT+GF |
| Inflammability class in acc.with UL 94 | V0 |
| Specification of flange thread | |
| Fixing screws | 拉铆螺钉 |
| for header with threaded flange，header must be screwed before soldering |
Joinect provides samples for user experience
D1STF-508-32
