Pluggable screw-free connectorsDKPGF-635-XXP
DKPGF-635-XXP
6.35mm
6.35mm
| Approval |
|
| Category | Pluggable screw-free connectors |
| Model | DKPGFW/H1-635-28P |
| Pitch | 6.35mm |
| Poles | 28P,32P,36P |
| Product application |
| Pitch[mm] | 6.35 |
| PCB hole diameter[mm] | |
| Pin dimensions[mm]x[mm] | |
| Technical data in accordance with IEC/DIN and VDE | |
| Rated voltage/Nominal current[V]/[A] | 250/6 |
| Surge voltage[kV] | 5.0 |
| Withstanding voltage/Current breakdown[VAC/min]/[A/S] | 2500/30 |
| Insulation Resistance/contact Resistance[MΩ]/[mΩ] | ≥500/≤5 |
| Capacity connection | |
| Cross section[mm²] | 1.0-1.5 |
| Outside connection | No handling of wires |
| Stripping length[mm] | 12 |
| Insulating material | PA66 +GF |
| Inflammability class in acc.with UL 94 | V0 |
| Specification of flange thread | M3x7 |
Joinect provides samples for user experience

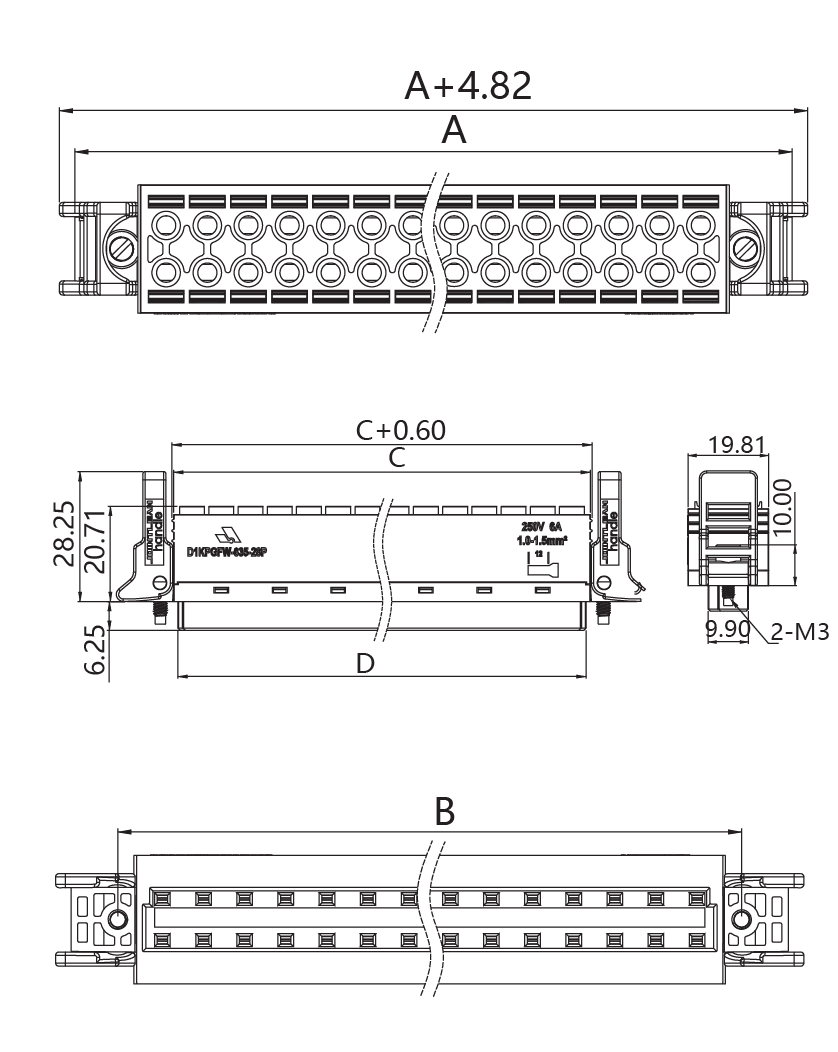

D1KPGFW/H1-635-XXP
