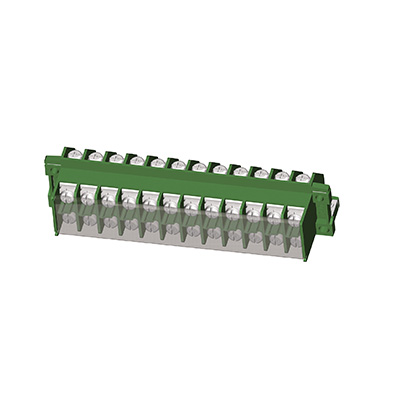

Current and Voltage terminalTD2.5-7.0/XX
| Category | Current and Voltage terminal |
| Model | TD4-10CL/XX-LLRR |
| Pitch | 10.0mm |
| Poles | |
| Color | Green |
| Pitch[mm] | 10.0 |
| Pin dimensions[mm] | 0.8x0.9 |
| PCB hole diameter[mm] | 1.4 |
| Technical data in accordance with IEC/DIN and VDE | |
| Rated voltage[VAC] | 660/690 |
| Nominal current(current and voltage terminal without pin)[A] | 25 |
| Nominal current(voltage connection with pin)[A] | 13.5 |
| Surge voltage | 5.0kV/12/50us |
| Withstanding voltage[VAC/min] | 2500 |
| Current breakdown[A/S] | 500 |
| Insulation Resistance[MΩ] | ≥500 |
| contact Resistance[mΩ] | ≤20 |
| Insulation class | III |
| Overvdtage category | III |
| contamination class | 2级 |
| CTI | CTI=2(250≤CTI＜400) |
| Minimum electrical clearance[mm] | 3.7 |
| Minimum creep distance[mm] | 3.7 |
| Mechanical | |
| Cross section of internal wire[mm²] | 0.5-4.0 |
| Cross section of external wire[mm²] | 0.5-4.0 |
| Internal stripping length[mm] | 5.0-7.0 |
| External stripping length[mm] | 5.0-7.0 |
| Internal connection | after connecting cold pressing tip with pre-insulated sleeve |
| External connection | after connecting cold pressing tip with pre-insulated sleeve |
| Internal fixation | screw to fix cold pressing tip |
| External fixation | screw to fix cold pressing tip |
| External screw Specifications | M4x8two combination screws |
| Internal screw Specifications | M4x8two combination screws |
| Fixed panel specifications | M3x13 |
| PCB fixed specification | M3x13 |
| Tightening torgue(M4)[Nm] | 0.8 |
| Tightening torgue(M3)[Nm] | 0.5 |
| Material | |
| Conductive material | brass |
| Coating technology | bottom of nickel tin plating |
| Production technology | press forming |
| Insulating material | PC |
| Inflammability class | UL 94V-0 |
| Production technology | injection moulding |
| Operating and storage environment | |
| Operating temperature[℃] | -40~+130 |
| Operating humidity[R.H] | 5%~95% |
| Storage temperature[℃] | -25~+55 |
| Storage humidity[R.H] | ＜95% |
| Accessories(optional) | Assembly test |
Joinect provides samples for user experience
TD4-10CL/XX-LLRR
